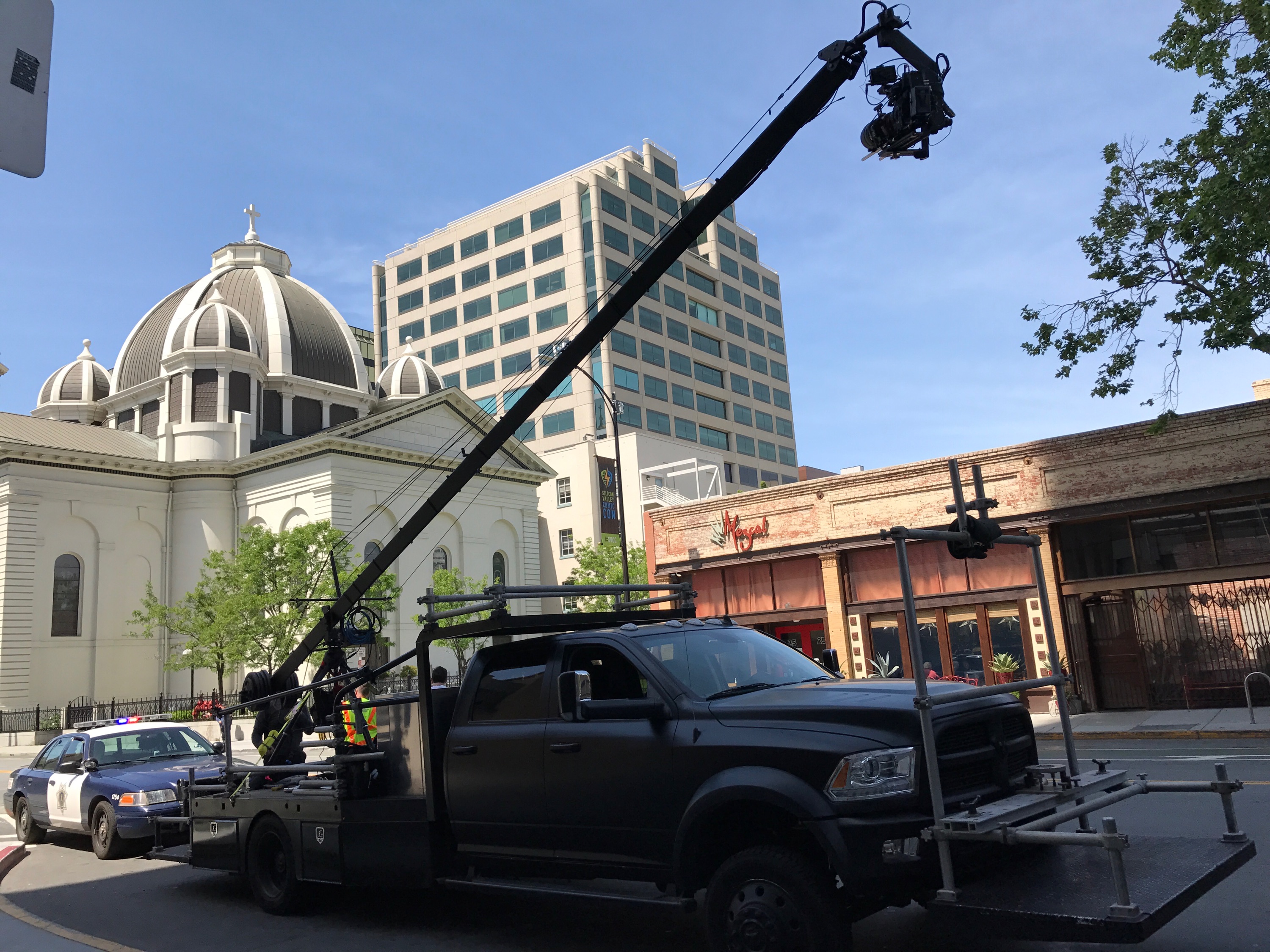

"The Beast" Crane Car is a loaded RAM 4x4, Crew Cab, Dually, Air-Ride platform with all the options and amenities you expect in a modern heavy-duty luxury truck. Custom built from the ground up with durablity and versatility in mind, it can take any crane into any environment. Director and Camera Crew have the option to work from the safe comfortable climate controlled interior or exterior platforms. Whatever vision or creative you seek The Beast will take you there - and back again.
Inventory:
- 15ft. Traditional Crane "Huey"
- 8ft. Traditional Crane "ILM"
- 15-24ft. Jimmy Jib (station-to-station only)
Crane Specs click here
* Ask about Telescopic and Remote Stabilized Cranes we can source for your project
- 2014 RAM 5500, Crew Cab, 4x4
- 6.7L Cummings Turbo Diesel, 380hp, 900lb-ft torque
- Air-Ride + FOX Shocks DSC
- Wireless Open-Mic Comms, HD Monitor/ Record Sys Included
- 4 Mitchell Slide Plates, Modular Rear Platform
- 25kW, 200 Amp, 60Hz, Single/ Three Phase Generator
- Clean Idle Cert., Wi-Fi Enabled Vehicle
- Max Speed: 90mph
- Length w/ Front & Rear Platforms: 30ft.
- Length without Platforms: 23ft.
- Travel Height 9ft.
- GVW: 19,500lb.
- Towing: 16,900lb./ Payload: 10,600lb.
- Base Weight: 9,000lb.
- Wheelbase: 16.4ft.
- Fuel Capacity: 86 Gal/ Range: 860 Miles
- Crew Cab Capacity: 5 total (driver + 4 passengers)
- Total Vehicle Capacity: 9 total (driver + 8 passengers)
GENERATOR SPECS:
- 25kW, 200 Amp, Perkins Diesel Plant
- Single Phase / Three Phase Selectable
- 100 Amps/ leg in Single Phase or 65 Amps/ leg in Three Phase
- Camlock Outputs, Bonded Neutral/ Ground, Male and Female Ground
- (3) Dedicated 20 Amp Edison Outlets
- Digital Diagnostic Control Panel
- Sound Attenuated Generator Box
